Overview

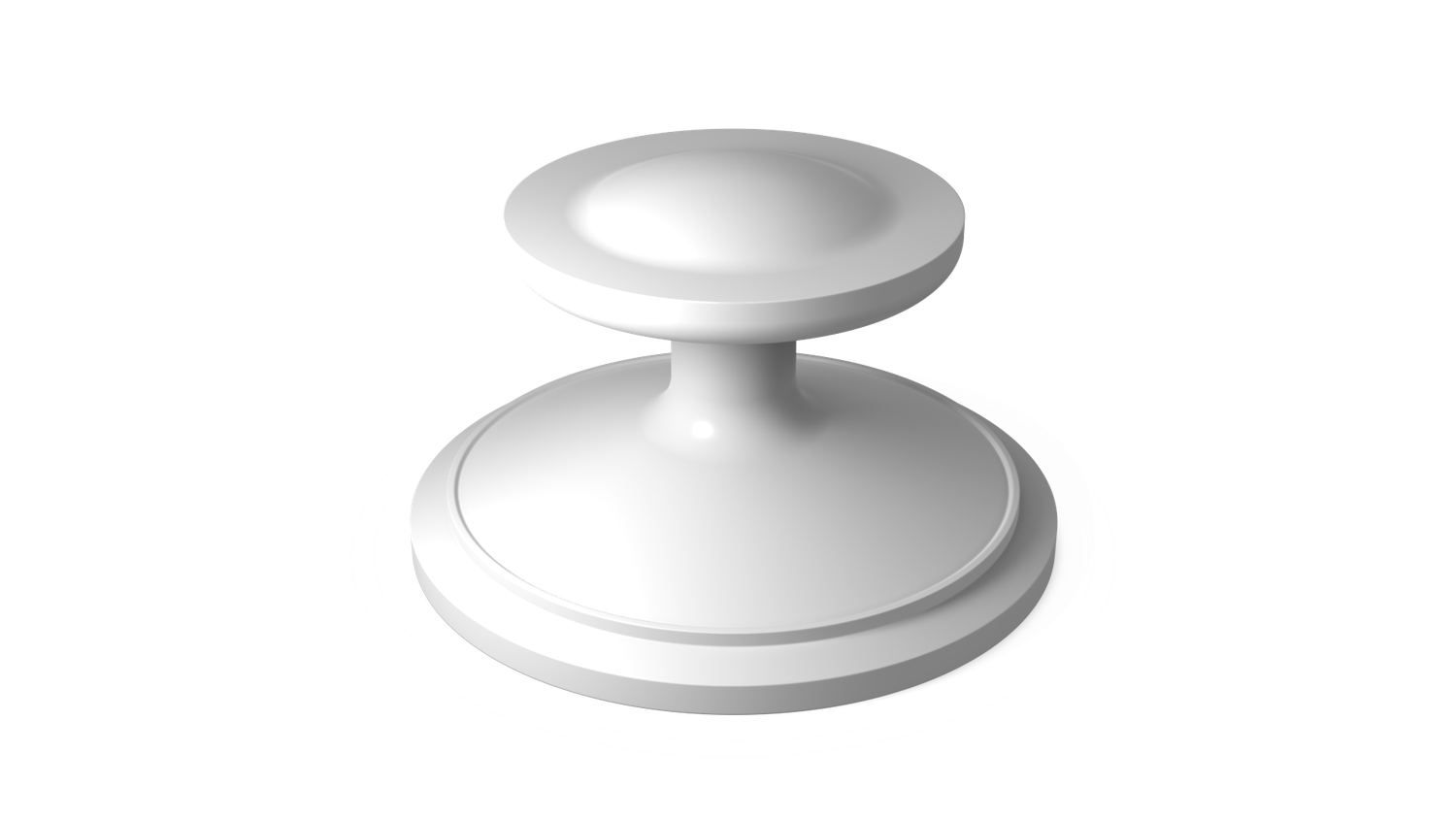

OEM Replacement Radial Diaphragms
The radial diaphragm in White Silicone (NA#/26W) offers an advanced solution for fluid regulation, combining robust performance. Made from high-quality, medical-grade white platinum silicone, fully credentialed. It is ideally suited for applications in sectors where safety, hygiene, and precise process control are crucial.
Applications
The replacement diaphragm in white Platinum Silicone is ideal for:
- Pharmaceutical manufacturing processes – Tank Bottom Outlet Valve, Point of Use valves.
- Biotechnological applications
- Suitable for all OEM NU### series valves
Technical Specifications
- Pressure Range: Engineered for high-demand environments. Range -1 to 6 bar (-14 to 88 PSI).
- Temperature Range: Min -40˚C to SIP @ 145˚C
- Material: CMD-1065 medical-grade Platinum Silicone with proven durability
- Laser Engraved: Each diaphragm is laser-engraved with Lot# and D.O.M. and NA#, ensuring full traceability
- Packaging:
- Standard: Sealed bag + carton box
- Optional: Cleanroom ISO7 packaged (non-sterile)
- Quality: At Ultrapharma, we uphold the highest quality standards by carefully controlling raw materials and ensuring full traceability throughout every stage of manufacturing.
Compliance
- USP<87>, USP<88> and USP<381>
- FDA CFR177.2600
- ADIF BSE-TSE free
- 316SS shaft with heat# registration
Testing
Radial diaphragms have been tested per ASME BPE Appendix K. Evaluation tests included SIP (Steaming In Place) up to 500 cycles.
