Overview

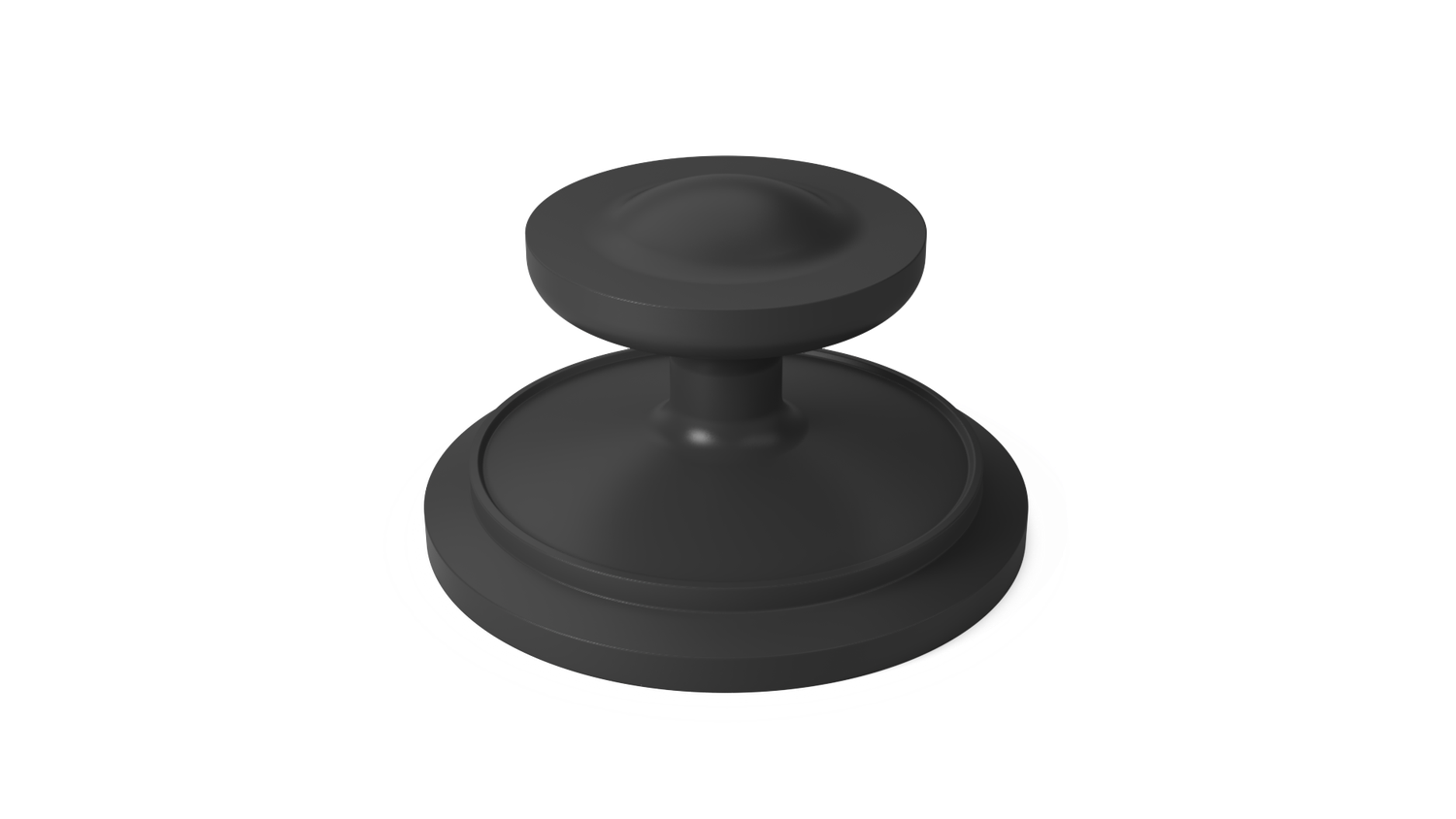

OEM Replacement Radial Diaphragms
The radial diaphragm in EPDM (NA#/22) offers an advanced solution for fluid regulation, combining robust performance. Made from high-quality Ethylene Propylene Diene Monomer, peroxide-cured and fully credentialed. It is ideally suited for applications in sectors where safety, hygiene, and precise process control are crucial.
Applications
The replacement diaphragm in EPDM is ideal for:
- Pharmaceutical manufacturing processes – Tank Bottom Outlet Valve, Point of Use valves.
- Biotechnological applications
- Suitable for all OEM NU### series valves
Technical Specifications
- Pressure Range: Engineered for high-demand environments. Range -1 to 6 bar (-14 to 88 PSI).
- Temperature Range: Min -40˚C to SIP @ 150˚C
- Material: CMD-1066 EPDM, peroxide-cured with proven durability
- Laser Engraved: Each diaphragm is laser-engraved with Lot# and D.O.M. and NA#, ensuring full traceability
- Packaging:
- Standard: Sealed bag + carton box
- Optional: Cleanroom ISO7 packaged (non-sterile)
- Quality: At Ultrapharma, we uphold the highest quality standards by carefully controlling raw materials and ensuring full traceability throughout every stage of manufacturing.
Compliance
- USP<87>, USP<88> and USP<381>
- FDA CFR177.2600
- ADIF BSE-TSE free
- 316SS shaft with heat# registration
Testing
Radial diaphragms have been tested per ASME BPE Appendix K. Evaluation tests included SIP (Steaming In Place) up to 500 cycles.
