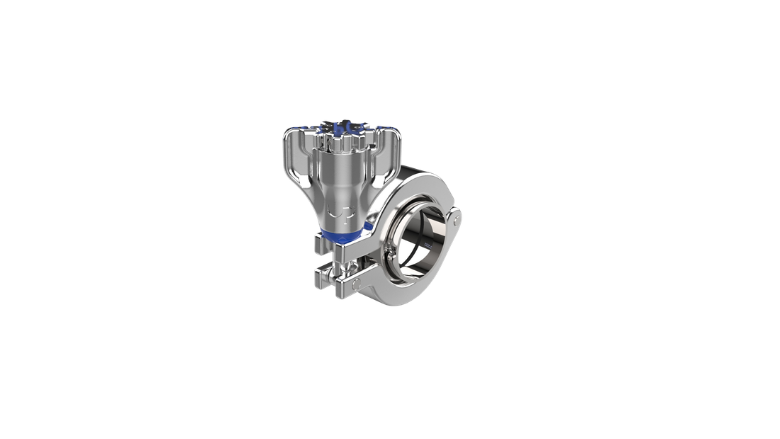

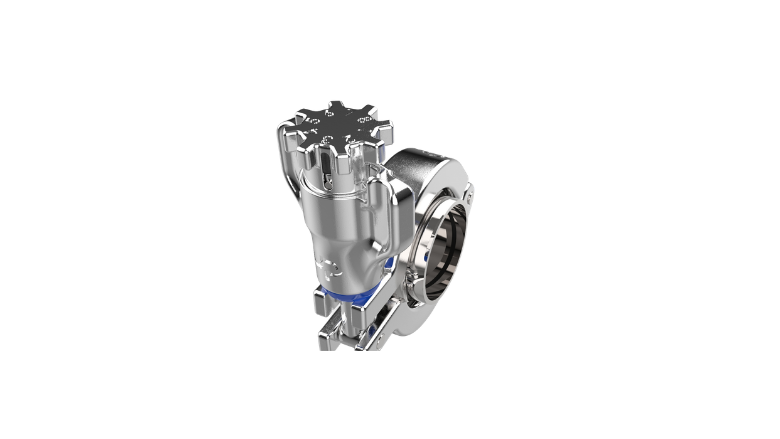

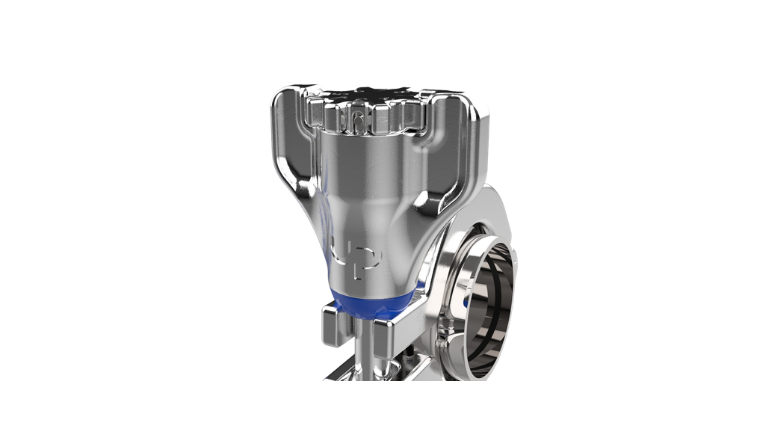

The Eazy-Clamp® is designed to be used in areas where operators are constantly working with Tri-Clover clamps. Connecting hoses, pressure gauges, sight glasses and taking them apart again for cleaning. A daily activity that acquires a lot of manual handling. The conventional wing nut sometimes requires up to 20 turns before you lock your gasket. The Eazy-Clamp® only requires half a turn. This reduces the chance of repetitive strain injuries (RSI). A new feature, that allows the operator to further tighten the connection in case of a leak without losing the integrity of a sterile connection, has been implemented. The majority of these connections can be made easily without misalignment issues, therefore the required torque can be as low as 1,5-2 Nm, which helps with a swift installation.
Ensuring product purity and process integrity across the pharmaceutical and biopharmaceutical industries.
The Eazy-Clamp® is engineered to improve efficiency in environments where Tri-Clamp connections are opened and closed multiple times a day. Requiring only a half turn to secure a connection, it significantly reduces assembly time compared to conventional wing nut clamps while helping to minimize repetitive strain for operators.
Designed and manufactured in the Netherlands, the Eazy-Clamp® features a preset torque mechanism for consistent gasket compression and an innovative adjustment function that allows connections to be re-tightened, if required, without compromising the integrity of the sterile seal. With a tested service life of more than 20,000 opening and closing cycles, it offers a durable and reliable solution for demanding pharmaceutical and biotechnology environments.
Whether connecting hoses, pressure gauges or sight glasses, the Eazy-Clamp® combines ergonomic operation with process reliability, making everyday maintenance and product changeovers faster, safer and more efficient.
Half the turn. Full control. Built for everyday performance.
Eazy-Clamp® is a registered trademark of Ultrapharma BV
Available now
The Eazy-Clamp® is available for all Single Pin (13LAH) clamps.

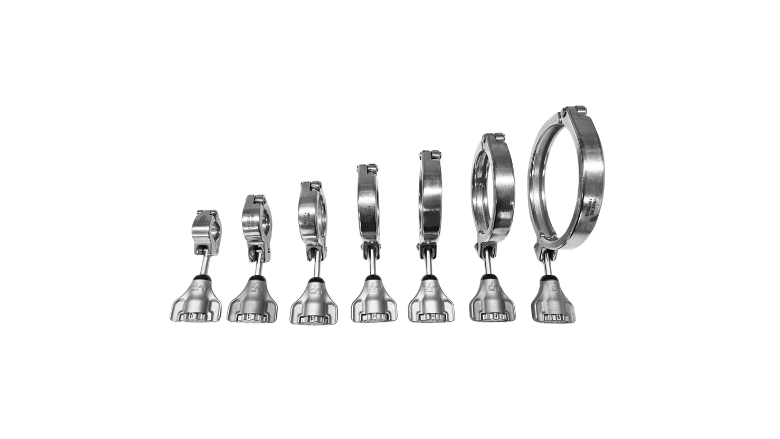

Sizes:
Our technical team is ready to help you select the right solution for your application
